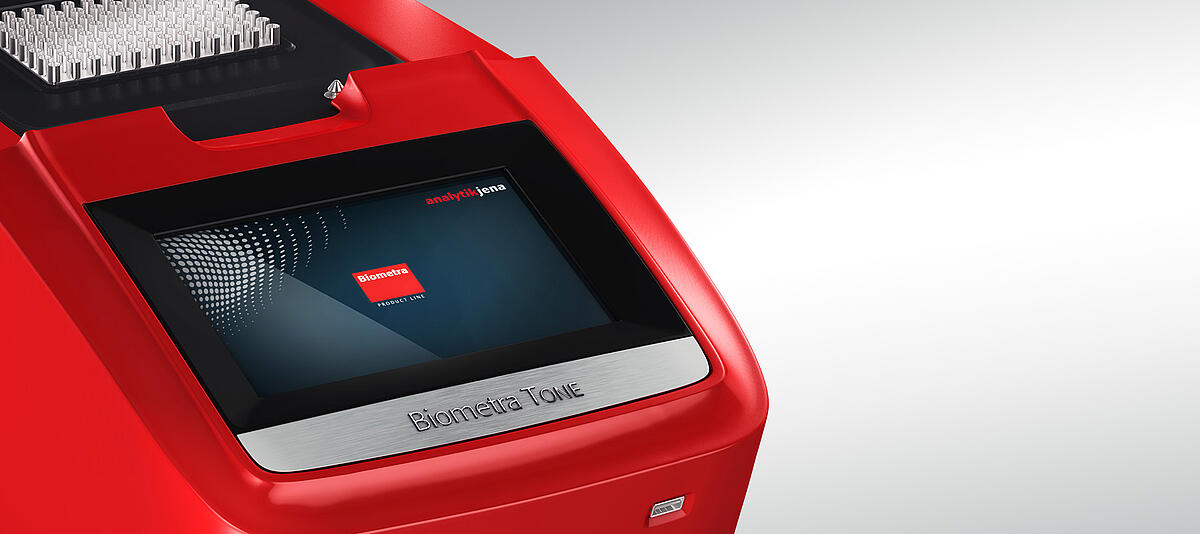

Biometra TOne 96 G with 96-well sample block (0.2 mL) and gradient function
Analytik Jena
A thermal cycler is a laboratory apparatus that is used to amplify segments of DNA via the polymerase chain reaction (PCR). It is also known as a thermocycler, PCR machine, or DNA amplifier. The device has a thermal block with holes where tubes holding the reaction mixtures can be inserted. The cycler then raises and lowers the temperature of the block in discrete, pre-programmed steps. This allows for the amplification of DNA segments through PCR. Thermal cyclers may also be used in laboratories to facilitate other temperature-sensitive reactions, including restriction enzyme digestion or rapid diagnostics
SKU:846-x-070-301
CATEGORIESs: Life Sciences
Specifications & Description
| Capacity | 96 x 0.2 ml tubes/ 96 well microtiter plate/12 x 8 well strips, 0.2 ml |
|---|---|
| Block | Aluminum, special alloy |
| Max. heating rate1 | 4.0 °C/s |
| Max. cooling rate1 | 3.3 °C/s |
| Max./min. gradient2 | 20 °C/0.1 °C |
| Gradient temperature range2 | 20 °C bis 99 °C |
| Temperature uniformity at 55 °C after 15 s | ± 0.20 °C |
| Temperature range | 3 °C bis 99 °C |
| Control accuracy | ± 0.1 °C |
| Lid temperature range | 30 °C bis 110 °C |
| Automatic restart after power failure | Yes |
| Software | "User-specific quick start option for the five most recent programs; program preview before start; option for toggling between table and graph programming mode; Linear Gradient Tool; Service Info Files (SINF) generation; expanded selftest; adjustable heating and cooling rates; gradient temperature diagram view; thermal cycler control via PCR Control App" |
| Program memory | 350 programs à 6 steps in up to 90 user directories |
| Language | English, German, Chinese |
| Dimensions (W x D x H, mm) | 260 x 430 x 241 |
